机电维修必备:常见电机型号与轴承对照表

2018/10/21 14:57:49 人评论 次浏览 分类:电工基础  文章地址://www.e-cumulus.com/tech/1684.html

机电维修中常遇到有电机铭牌却对应无轴承型号的问题,昌晖仪表提供的常见电机型号与轴承对照表轻松解决这个困扰!电机轴承专门应用于电动机或者马达上的一种专用轴承,它是一个支撑轴的零件,它可以引导轴的旋转,也可以承受轴上空转的部件。

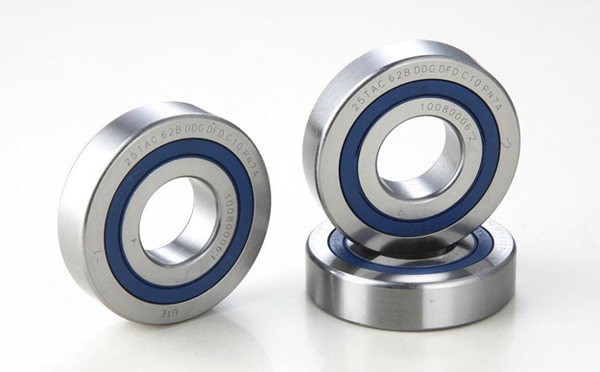

电机轴承
常见电机型号与轴承对照表
电机中心高   电机极数   电机驱动端(D-end)轴承型号     电机非驱动端(N-end)轴承型号       电缆接口 mm
71M                 2,4,6,8           6202-2RS/2Z                              6202-2RS/2Z                                     M24×1.5

80M                 2,4,6,8           6204-2RS/2Z                              6204-2RS/2Z                                     M24×1.5
90S                  2,4,6,8           6205-2RS/2Z                              6205-2RS/2Z                                     M24×1.5
100L                 2,4,6,8           6206-2RS/2Z                             6206-2RS/2Z                                      M30×2
112M               2,4,6,8           6207-2RS/2Z                              6207-2RS/2Z                                     M30×3
132S                 2,4,6,8          6208-2RS/2Z                              6208-2RS/2Z                                     M30×4
132M               2,4,6,8           6208-2RS/2Z                              6208-2RS/2Z                                     M30×2
160M               2,4,6,8           6209-2RS/2Z                              6209-2RS/2Z                                     M36×2
160L                 2,4,6,8           6209-2RS/2Z                              6209-2RS/2Z                                     M36×2
180M               2,4,6,8           6210-2RS/2Z                              6210-2RS/2Z                                     M36×2
180L                 2,4,6,8           6210-2RS/2Z                             6210-2RS/2Z                                      M36×2
200L                 2,4,6,8           6212-2RS/2Z                              6212-2RS/2Z                                     M48×2
225S                 4,6,8             6213-2RS/2Z                              6213-2RS/2Z                                     M48×2
225M               2,4,6,8           6213-2RS/2Z                              6213-2RS/2Z                                     M48×2
250M               2,4,6,8           6314/C3                                     6214/C3                                             M64×2
电机中心高   电机极数    电机驱动端(D-end)轴承型号    电机非驱动端(N-end)轴承型号 电     缆接口mm
280S                     2               6314/C4                                     6214/C4                                             M64×2
280S                 4,6,8             6316/C3                                      6216/C3                                            M64×2
280M                   2               6316/C4                                      6216/C4                                            M64×2
280M                4,6,8           6316/C3                                       6216/C3                                             M64×2
315S                    2              6316/C4                                       6216/C4                                             2-M64×2
315S                 4,6,8           6319/C3                                       6219/C3                                             2-M64×2
315M                  2               6316/C4                                       6216/C4                                            2-M64×2
315M                4,6,8           6319/C3                                       6219/C3                                             2-M64×2
315L                    2              6316/C4                                       6216/C4                                             2-M64×2
315L                 4,6,8           6319/C3                                        6219/C3                                            2-M64×2
355M                  2              6319M/C4                                    6319M/C4                                          2-M64×2
355M               4,6,8            6319/C3                                       6219/C3                                             2-M64×2
355L                   2               6319M/C4                                    6319M/C4                                         2-M64×2
355L                 4,6,8            6319/C3                                       6219/C3                                            2-M64×2
文章《常见电机型号与轴承对照表》昌晖仪表选型整理,干货资料,赶快分享给更多的朋友!
